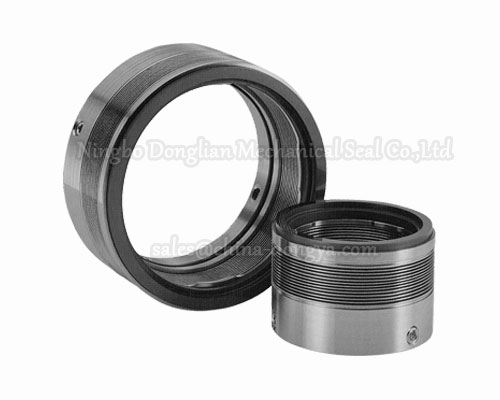

Metal bellow seal DY785

Products Mode: metal bellow seal DY785
metal bellow seal: metal bellow seals
Dyseals is specialized in making metal bellow seals in silicon caride/sic,sintered silicon carbide/ssic/alpha silicon carbide/alpha sic,ceramic 99.5%,ceramic99%,ceramic 95%,carbon,tungsten carbide and so on.
metal bellow mechanical seal: metal bellow mechanical seals

Working Conditions of metal bellow mechanical seals DY785

 Mediums:Oil,light hydrocarbon,aromatic hydrocarbon, organic solvents,weak acids, alkali,Ammonia,etc.  Temperature:-20oC~200oC   Pressure: ≤2.0Mpa  Speed: ≤ 23m/Sec

seal rings/faces:

Stationary Ring:silicon carbide/tungsten carbide
Rotary face:Carbon/Silicon carbide/tungsten carbide
Secondary Sealing elements:NBR/EPDM/Viton
metal bellow:AM350/Inconel 718

 Metal Parts:Stainless Steel 304,316
