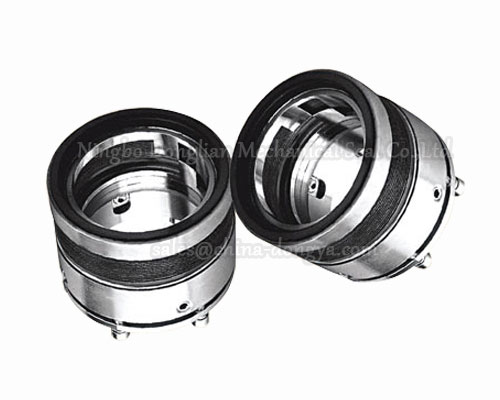

Metal bellow seal DY706

Products Mode: metal bellow seal DY706
A combination of a spring and secondary sealing element is a metal bellow.There are welded edge metal bellows and formed bellows. DY706 is a metal bellow mechanical seal with bellow welde and the bellows are made of AM350 and inconel 718

metal bellow mechanical seals DY706 can be used in fluids,such as,Oil,light hydrocarbon,aromatic hydrocarbon, organic solvents,weak acids, alkali,Ammonia,etc.and the temperature from minus degrees 75-400,the pressure is less than 2.0 Mpa(Single bellow)and less than 6.0Mpa(Double bellows) and the pump shaft speed is 23m/Sec at maximum.
